Overview:
The BJVP pigging system for the cleaning of process installations saves valuable raw material by completely recovering it. The need for costly cleaning agents, which mostly causes high water consumption for rinsing and results in a large waste water volume, plus consequently high waste disposal costs, are cut to a minimum.BJVP Pigging System is a specialized equipment to remove residual product from the line, which would be left after transferring product from one location to another. The equipment includes launcher, receiver, PIGSTOP, etc. The technology has passed the audit and inspection of China National Patent Office, obtained the national patent authorization, and complied with ISO9001-2000 international quality system certification, and the technology has reached the international advanced level.
Characteristics:
The following functions can be realized through Pigging
- Optimal use of resources
- Increase yields
- High-accuracy pipe Pigging System
- Reduce flush waste
- Save time and money
- Reduce contamination risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Increased economic efficiency in production
Parameters:
| Port Type | ASME B16.5 RF |
| Pipe Size | 1.5”~8” |
| Pressure Standard | ANSI 150# |
| Material | WCB,CF8,CF8M,Alloy |
| Liquid Viscosity | 0.1～440,000 cst |
| Liquid Temperature | -52～380℃ |
| Product Category | ASME B16.5 RF Launcher Receiver Pig Stop T-way valve Three-way distribution valve 5D elbows Pig Pigging line Electric cabinet Control System |

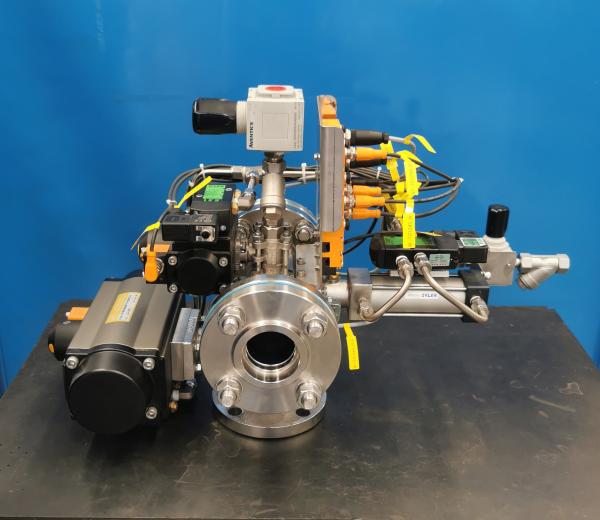

Pictures:
Applications:
- Chemical product
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
